PCB Holder Workbench Mount (upside down mount!)

Just a simple desk/workbench/wall mount for my (cheap) PCB Holder so it always have it within reach when I need it (see example photos).

Download: 29kb

FREE DOWNLOAD(S) [?]

By clicking on the 'I Agree & Add to download basket', you confirm that you have read and agree to the License shown at the License tab.
Categories: , ,

Information

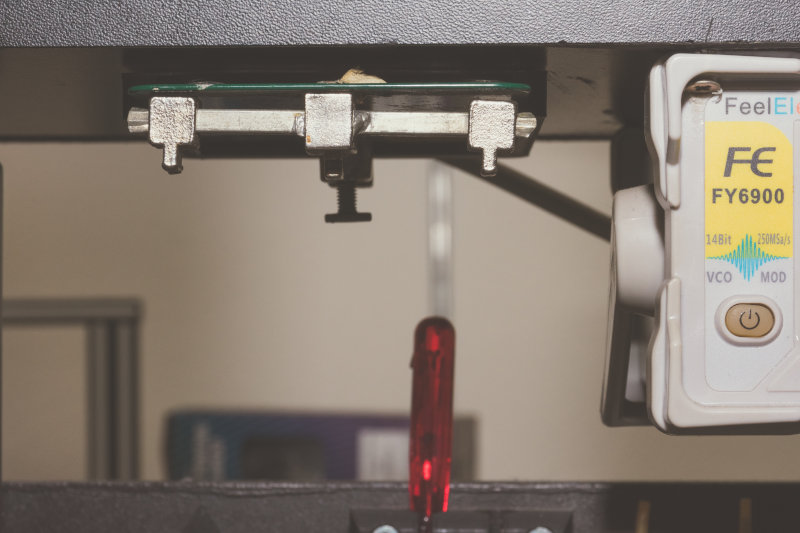

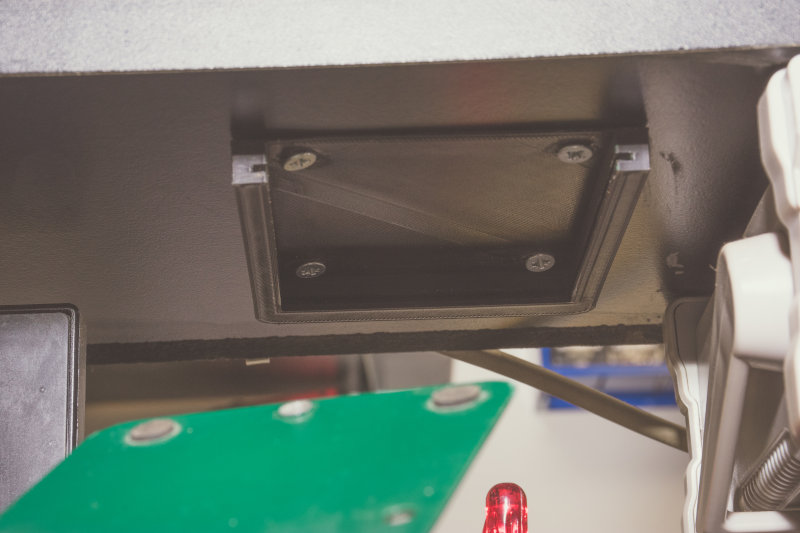

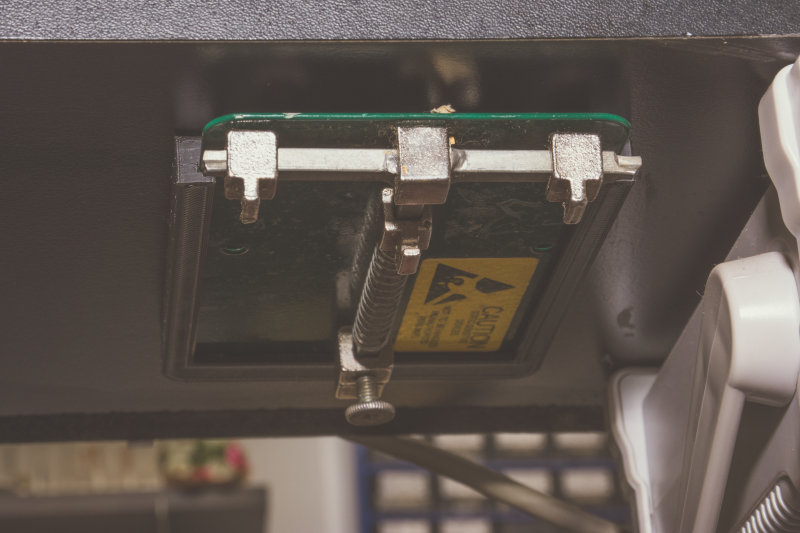

A simple desk-mount I’ve designed a few years ago to mount my metal PCB Holder (for soldering) onto one of the shelves of my workbench, so that it hangs ‘upside down’ easily in reach when I need it.

There are several of these mounts and you can find them under different brands, mine comes from AliExpress, but Adafruit®for example also sells one that would (most likely) fit in this mount).

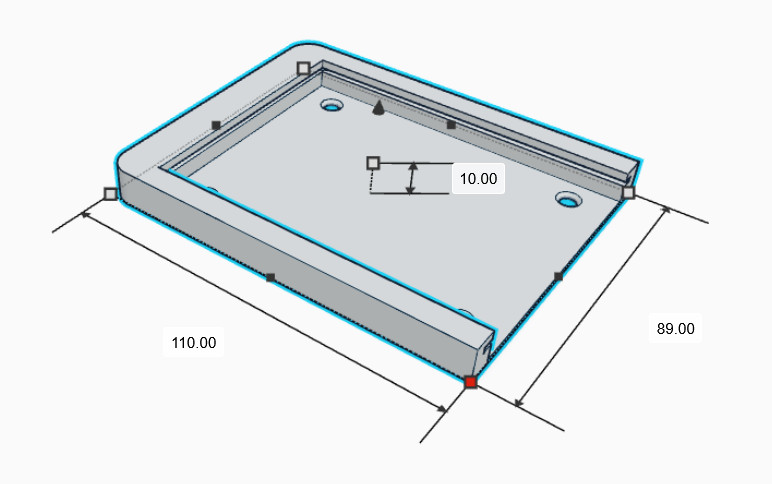

Dimensions: 89x110x10mm
Hole/Slot dimensions: 81.50×104.50×1.80
