XNL Protoboard A 100x100mm (38×36)+36P 1404 Holes

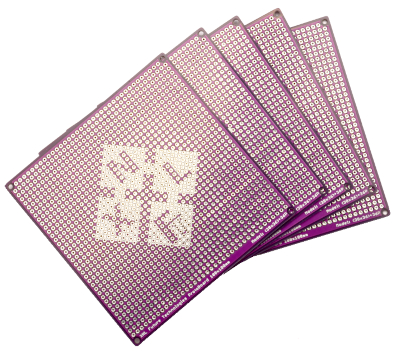

This is our 100x100mm (10x10cm) XNL Protoboard XPB5722-A.

There are two versions, this one which has ‘small ground planes’ between each hole and along it’s edges. and the XPB5722-A1 which doesn’t have these ‘ground planes’
For most users we would recommend using the XPB5722-A1 instead!

Specifications:
Size: 100x100mm
Holes: 1404 (38×36)+36
Spacing: 2.54mm / 0.1”
Model: (38×36)+36P
P/N: XPB5722-A

Download Size: 307kb

FREE DOWNLOAD(S) [?]

By clicking on the 'I Agree & Add to download basket', you confirm that you have read and agree to the License shown at the License tab.

Information

This is one of own XNL Future Technologies Protoboards, these protoboard can be used to make ‘prototypes’ of your projects when “you’re ready to move from breadboard to PCB”, but aren’t ready yet to design your own custom circuit board (or of course for projects which don’t require a custom designed circuit board at all).

These XNL protoboards have a grid of 38 by 36 holes plus another 36 ‘extra holes’ along the ’38 holes side’, which gives you a total of 1404 holes. The board is designed as double-sided board and due to the 2.54mm (0.1″) space (pitch) between the holes it will fit any normal DIP chip or other components which would also fit on your breadboard. And due to the fact that the board is double sided (where each hole is connected to the same hole on the other side of the board), it will also be a lot easier to make your projects/prototypes a lot smaller because you can work on both sides of the board. The pitch and (round narrow) shape of the solder-pads also makes them perfect to for example use SMD/SMT components like 0805 LED’s, Resistors and capacitors, which can even reduce the size of your project/prototype even further.

This model has small (unconnected) ‘ground planes’ between all the pads, and also (unconnected) ‘ground planes’ along the edges of the board. When scratching off some of the silkscreen (and thus exposing the copper plane underneath) you can use these ‘mini planes’ to use them as additional signal or power traces. Or (for the edges) even as ‘improvised antenna’ or as ‘capacitive touch sensor’. This model of our 100x100mm Protoboard is however not recommended for most users due to this (because they might unintentionally cause shorts when they are soldering with temperatures which are to high).

For most users we would recommend to use the XNL Protoboard A1 instead.

Board Specifications:
Size: 100x100mm
Holes: 1404 (38×36)+36
Spacing: 2.54mm / 0.1”
Model: (38×36)+36P
P/N: XPB5722-A
